X-Mill 400 4-AXIS
X-Mill 400 4-AXIS

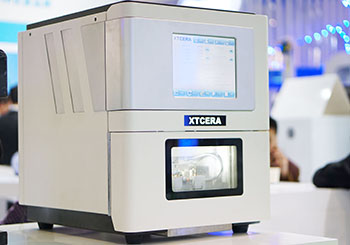

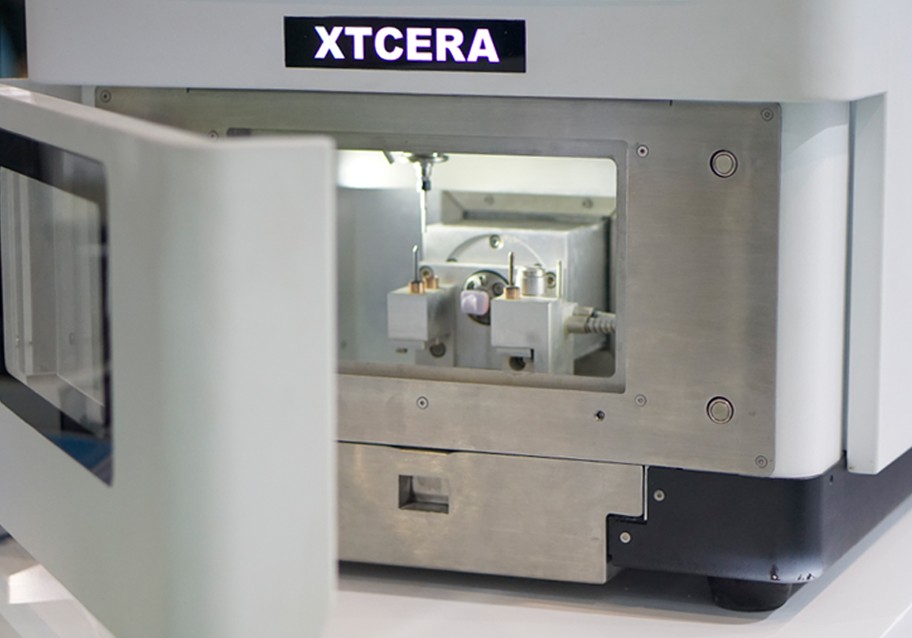

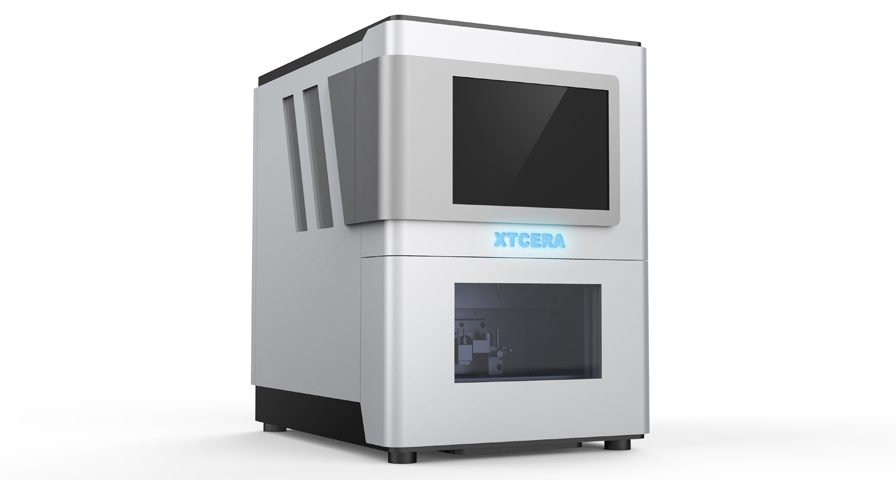

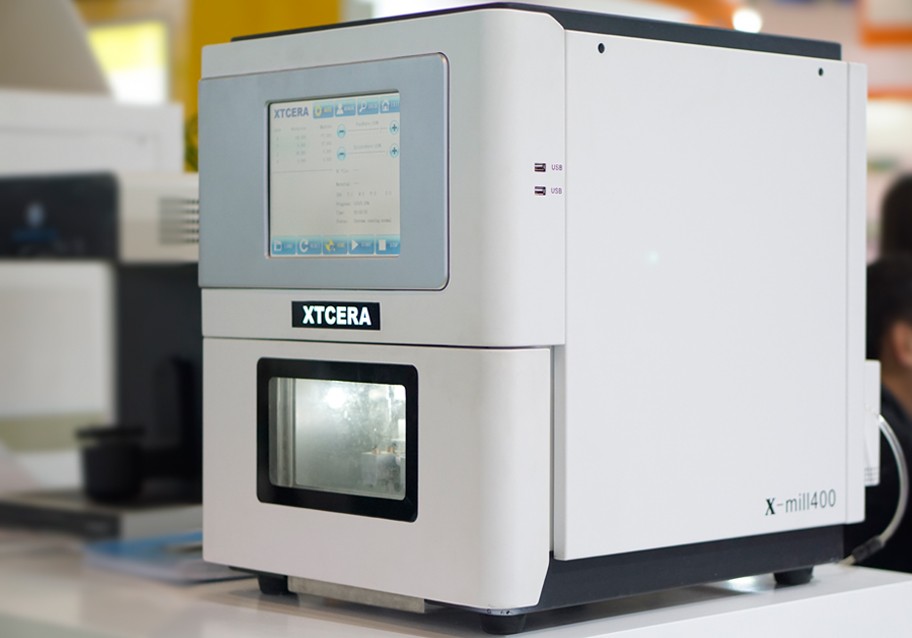

X-Mill 400 milling machine was developed by Shenzhen Xiang Tong Medical Technology Co., LTD. Four axis dental carving and milling machine,integrated design, making work regionalization simplicity;Dry milling style,especially the development of control system Fitting with X-soform operation platform and supporting the use of digital denture;Horizontal structure design, the key control unit is made of high quality imported original, screw, guide rail, such as components and maintenance-free design, reducing the equipment for professional maintenance problems.High speed, high precision machining, wax takes 3-4 min/pc, zirconium takes 8-10 min/pc.
In 2015, X-Mill 400 milling machine become China's best-selling dental CAD/CAM carving and milling,annual sales of more than 150 units, the total market more than 350 units, worthy of sales champion.
Dimension：490*700*610mm
Weight：Approximately 80kg
Input Voltage：Single-phase AC 220v
Max Power：900W
Spindle Power:250w
Axis quantity：4
Milling range:360°
Milling Mode： Wet Milling
Max speed：60，000rpm
Max Feeding speed：6000mm/min
Bur Capacity：3
Bur Changing：Automatic
Cooling：Natural coolling
Materials：PMMA 、Glass Ceramic
Milling Time： Glass Ceramic：15mins
