DS-MIX Scanner
DS-MIX Scanner

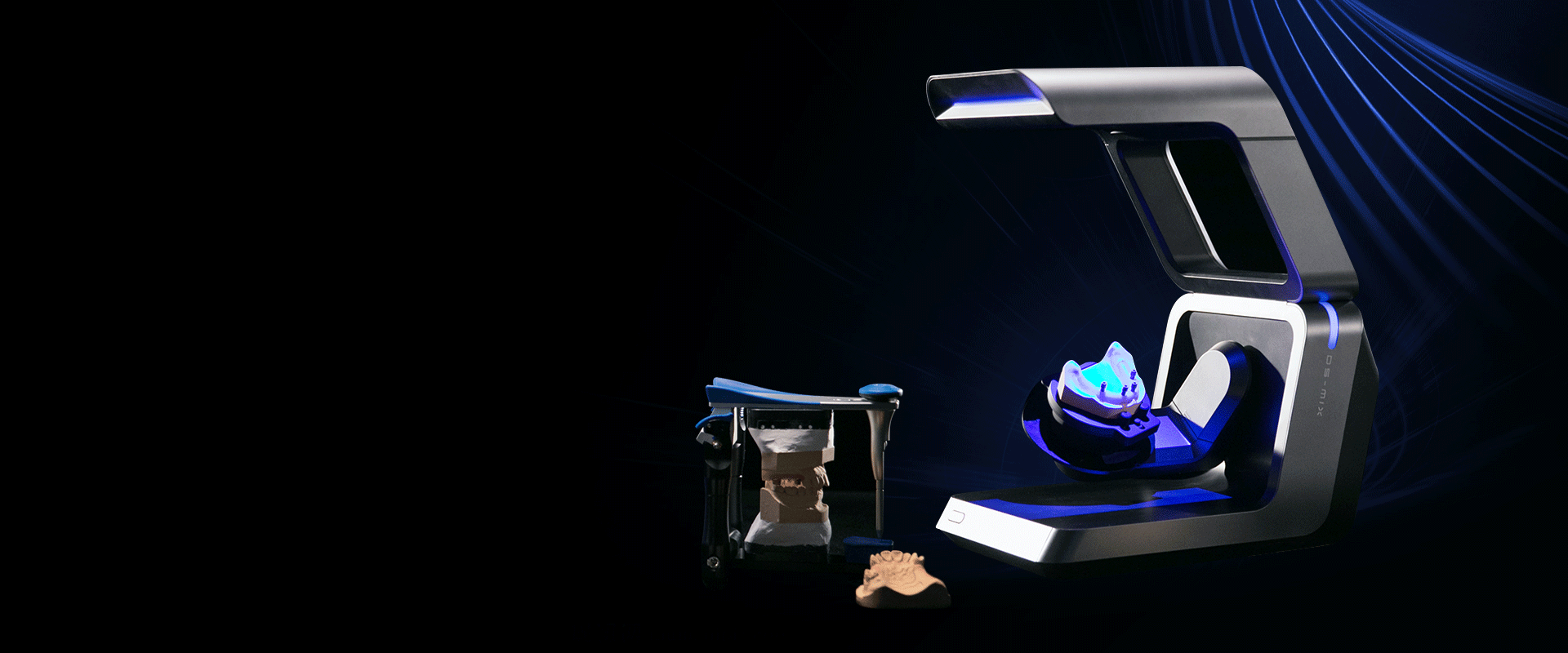

AutoScan-DS-MIX
More Than Details. 2×5.0 MP cameras
. Accuracy ≤7μm
. Intelligent scan
. High-end implant and veneer applications
VERSATILE APPLICATION
AutoScan-DS-MIX supports multiple dental scan applications, including abutment, scan body, articulator, veneer, non-separated model, all-in-one, impression, texture etc.
TECHNICAL SPECIFICATIONS AutoScan-DS-MIX
Camera Resolution : 2 x 5.0MPAccuracy : ≤ 7 µm (ISO12836)
Scan Time : 6 s for bite scan; 13 s for upper / lower jaw scan; 18s for 1-4 dies scan; 33 for 5-8 dies scan; 32 s for impression scan **
Articulator Scan : Dynamic / static; support articulator transfer
Output Format : STL, PLY
Light Source : Blue Light
Dimension : 238 mm * 340 mm * 447 mm
Weight : 7.5 kg
Interface : USB 3.0
Power Supply : DC24 V
